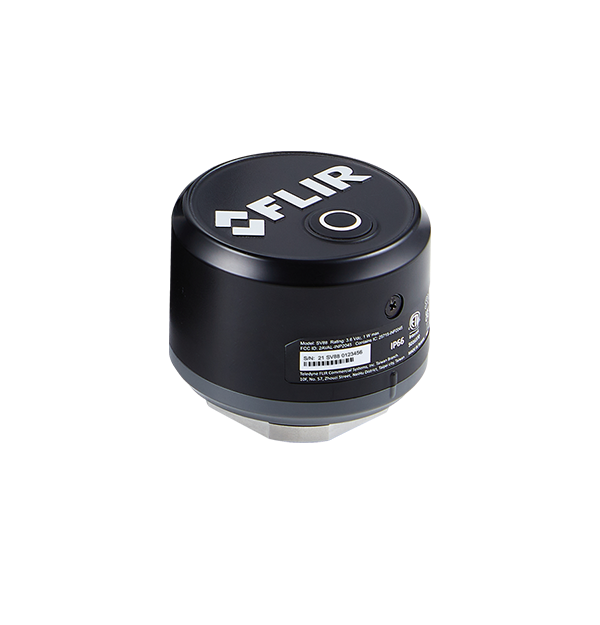

The FLIR SV88™ vibration and temperature sensor helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems. With it’s Multi-communication protocols, rugged, IP66 rating and wireless capability, the SV88 allows you to make critical data-driven decisions that alert you to potential issues to aid in extending the life of your valuable assets.
Specifications
| Measurement & Analysis | |
|---|---|
| Capture Rate | Configurable: 1 min (minimum) 1 day (maximum) |
| Frequency Range | 10 Hz to 5 kHz |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Sensitivity Range | ±16 g |
| Temperature Range | Display measurement trend of contact temperature -20°C to 80° C (-4°F to 176°F) |
| Vibration Analysis Data | Grms, Vrms, (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard deviation, FFT |
| Communication & Data Storage | |
|---|---|
| Communication Protocol | TCP Socket |
| Memory | 1 MB Flash |
| Output Data | 5 KHz, (X/Y/Z): 19,200 raw data |
| Range (During A Session) | Up to 50 m (160 ft), line of sight |
| Wi-Fi Type | IEEE 802.11n |
| Power | |
|---|---|
| Battery life | Min 2 years subject to sampling rate and installation environments |
| Battery type | LS17500 3.6 V 3600 mAh Li battery (replaceable) |
| LED Indicators | Low battery LED |
| Environmental & Certifications | |
|---|---|
| Altitude | 2000 m (6,562 ft) |
| Certifications | ETL/FCC/IC/CE/UKCA/RCM |
| Drop test | 1 m (3 ft) |
| Humidity (Operating and Storage) | 10% to 95% relative humidity, non-condensing |
| IP Rating | IP66 |
| Operating Temperature Range | -20° to 80°C (-4°F to 149°F) |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Storage Temperature Range | -20° to 80°C (-4°F to 149°F) |
| Warranty | 3 years |
| General | |
|---|---|
| Size (L x W x H) | 65 × 65 × 55 mm (2.6 × 2.6 × 2.2 in) |
| Weight | 187 g (6.6 oz) |
