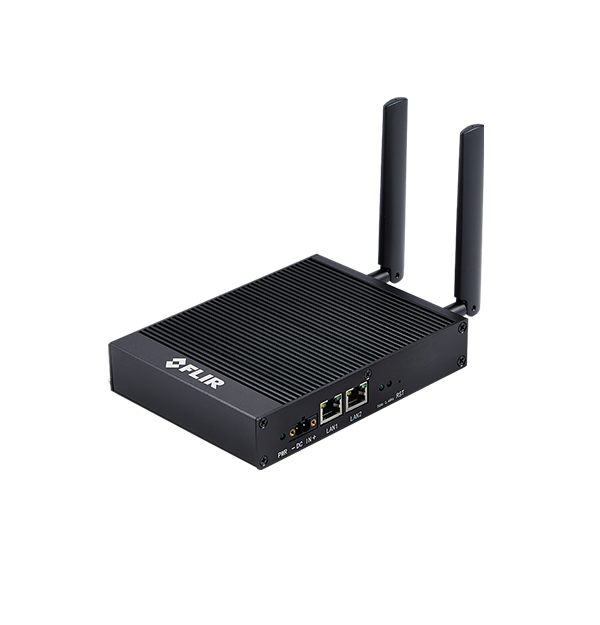

The FLIR GW66 Remote Monitoring Gateway is part of the FLIR SV88™ and SV89™ Vibration Monitoring Solution Kits. It receives vibration and temperature data from SV88 and SV89 sensors and sends data to the built-in webserver and CBM.
The GW66 gateway also stores the data to its internal memory in case of Wi-Fi outage.
For more information on the FLIR SV88 or SV89 Vibration Monitoring Solution Kits, please visit flir.com/SV88-KIT or SV89-KIT.
Specifications
| Measurement & Analysis | |
|---|---|
| Relative Humidity | 10% to 95% relative humidity, non condensing |
| Communication & Data Storage | |
|---|---|
| Communication Protocol | MQTT, Modbus, OPC UA |
| Ethernet | LAN, WAN
1 x 10/100/1000 Base-TX MDI/MDIX for LAN 1 x 10/100/1000 Base-TX MDI/MDIX for WAN |
| Memory | DDR3L 512 MB |
| Output Data | Vibration analysis data: Grms, Vrms, (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT |
| Processor | ARM Cortex-A7 |
| Storage | 32 MB NOR Flash |
| Wi-Fi Type | IEEE 802.11 b/g/n |
| Power | |
|---|---|
| AC Input | TA87 universal power adapter: 100 V to 240 V AC, 50/60 Hz (optional) |
| LED Indicators | WAN, LAN, 2.4 GHz, 5GHz, dual band, dual concurrent |
| Power Input | 12 VDC |
| Power over Ethernet (PoE) | 802.3 at standard PoE (PD) @ WAN port |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | 25°C to 65°C (-13°F to 149°F) |
| Relative Humidity | 10% to 95% relative humidity, non condensing |
| Storage Temperature Range | 25°C to 65°C (-13°F to 149°F) |
| General | |
|---|---|
| Operating System | Built-in webserver (Linux) |
| Size (L x W x H) | 57.3 × 39.3 × 46.1 mm (2.25 × 1.55 × 1.81 in) |
| Weight | 645 g (22.75 oz) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Firmware Download
Flir GW66 Firmware
Firmware Release Note
Flir GW66 Firmware Release Notes
Datasheet
FLIR SV88 SV89 Vibrations Kit Datasheet
Configuration Guide
FLIR GW66 OPC UA Host Utility Application Note
Configuration Guide
FLIR MQTT Host Utility Application Note
Configuration Guide
FLIR Modbus TCP Host Utility Application Note
User Manual
FLIR SV88-KIT SV89-KIT User Manual
Quick Start Guide
FLIR SV88-KIT SV89-KIT Quick Start Guide
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
